PB2400
High-Performance Industrial Portable Battery Generator
3,600W rated
20,000W peak for motor-start surge
IP54
Dust and splash protected
Near-silent
Operating sound <30dB
Product Features
0W
Rated Power
0W
Peak Power
0.0h
Charging Time
>0%
Efficiency
0.0kWh
Rated Capacity
IP0
Protection Level
<0dB
Operating Sound
0kg
Weight
APP
Bluetooth Monitoring
Explore the PB2400
Tap a marker to see what each part of the unit does.
2× AC Output
230V pure sine wave, 3,600W rated, 16A (peak 140A). Tools run exactly as they do on mains — 20,000W peak absorbs motor-start surge.
Application Samples
Brochure-tested output on a single charge.
3kW Arc Welder
230 V, Ø2.5 mm electrodes: 45–55 welds
3.2kW Core Drill
Up to 11 holes (Ø150 mm × depth 150 mm)
1.4kW Drill
230 V, up to 243 holes (Ø35 mm × depth 10 mm)
2.7kW Cutting Saw
Up to 41 cuts on Ø110 mm cast-iron pipes
2.2kW Demolition Hammer
Breaks up to 8.2 tons of concrete slabs
Industrial Vacuum Cleaner
Suction capacity: 8,500 liters
2.3kW Pump
Maximum delivery: 50,000 liters (780 L/min; 64 minutes)
Load Builder
Pick the tools your crew runs. See what one charge delivers — and how many units your site needs.
Your tools
Arc Welder
3,000W
0
Core Drill
3,200W
1
Cutting Saw
2,700W
0
Water Pump
2,300W
0
Demolition Hammer
2,200W
0
Angle Grinder
2,200W
0
Drill
1,400W
0
Air Compressor
1,500W · typical rating
0
Industrial Vacuum
1,200W · typical rating
0
LED Floodlight
200W · typical rating
2
Site Fan
150W · typical rating
0
Laptop / Comms
100W · typical rating
0
Tool-on time per hour50%
Power tools rarely run continuously. 50% is typical for drilling and cutting; lighting and pumps run near 100%.
Running load
3,600W
0W3,600W rated per unit
1h 13m
Runtime per charge
1×
Units for simultaneous load
7
Charges per 8-hour shift
Runs on a single PB2400
Brochure-tested per charge
Core Drill: 11 holes Ø150×150mm per charge
Estimate based on 2,304Wh at 97% efficiency. Actual runtime varies with tool and material.

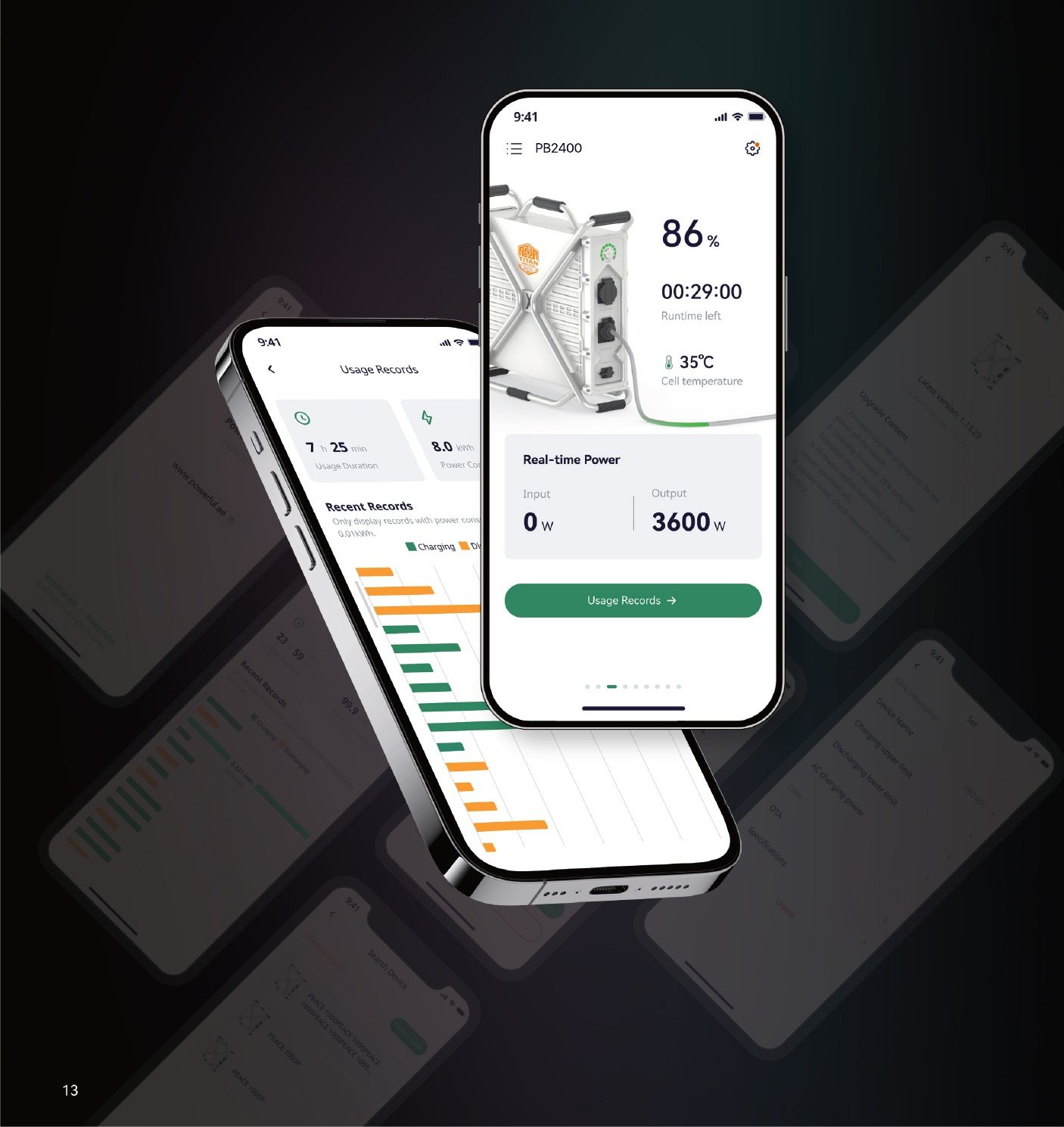

Digital Intelligent Monitoring App
Connect over Bluetooth to monitor operating data and adjust system parameters in real time.
Range
